Displaying Instagram feed using Instagram basic display API in Kuroco

Overview

Kuroco allows you to create your own custom APIs and also provides plug-ins that send requests to external APIs which allows you to use services that are not listed in the external system integration, this can be done using the custom function or batch process feature in Kuroco. We will be using the Instagram basic display API as an example in this tutorial.

Kuroco has no built-in integration with Instagram in the external system integration menu but you can display the Instagram feed by sending a request to the Instagram basic display API with the {api} plugin.

What you will learn

We will display the Instagram feed with the following steps:

• Instagram settings
• Kuroco settings (setup)
• Implement authorization feature using Kuroco and Nuxt.js
• Periodically get the Instagram feed via Kuroco
• Periodically refresh long-term access tokens in Kuroco

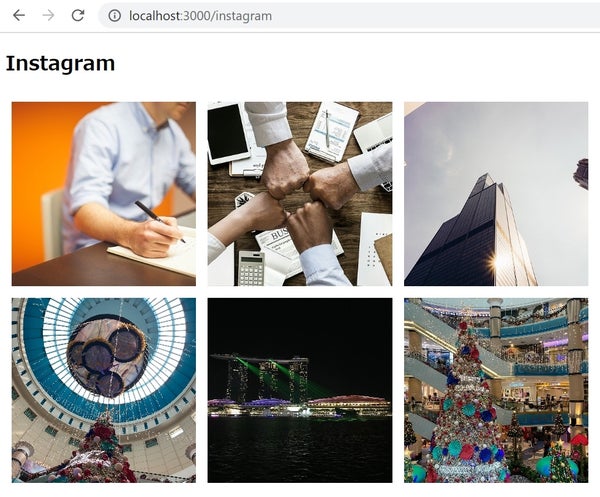

• Display Instagram feed using Kuroco and Nuxt.js

Prerequisites

The following accounts are required before starting this tutorial:

• Facebook developer account
• Instagram account

In addition, this tutorial assumes that you have already built a Nuxt.js project with Kuroco. If you haven't built one yet, see the tutorial below.

• Beginner's guide to Kuroco

caution

The Instagram basic display API is implemented with reference to the official document. If there are any discrepancies, refer to the lastest information in the official document instead.

Instagram settings

Create Facebook app

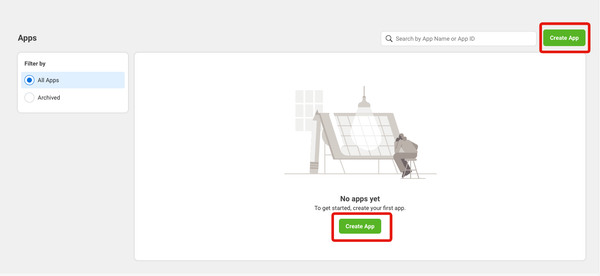

Access developers.facebook.com/apps and click [Create App].

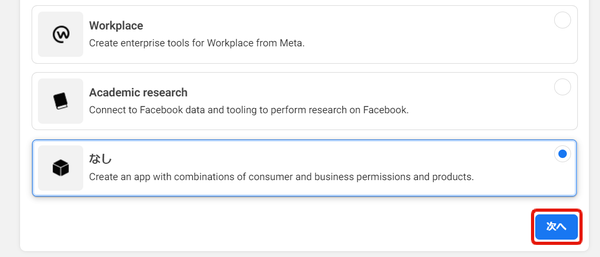

Select [None] for the type.

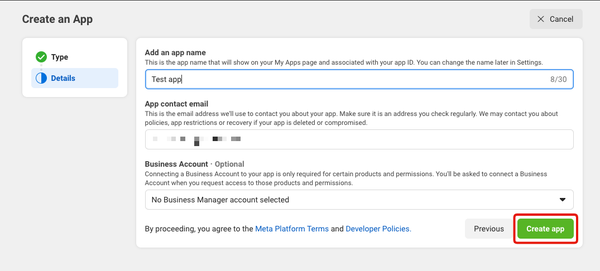

Enter the app name and click [Create app].

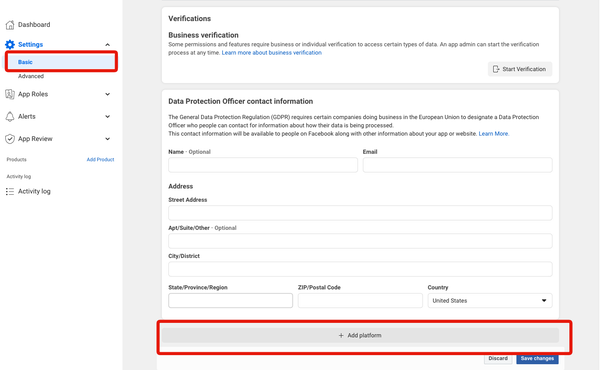

Go to the app dashboard once the app is created, then go to [Settings] > [Basic], scroll to the bottom of the page and click [Add platform].

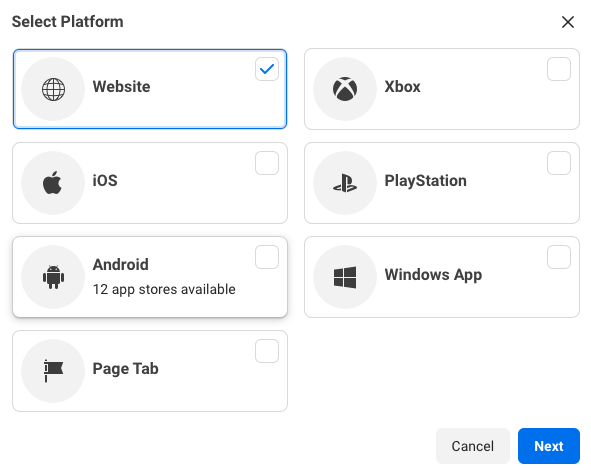

Select "Website" and click[Next].

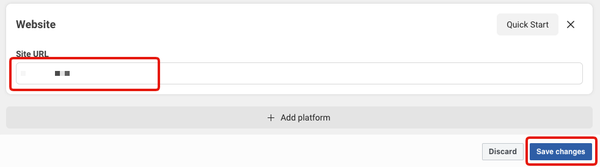

A field for entering the site URL will be displayed.
Enter Kuroco's front-end URL and click [Save changes].

Create Instagram app

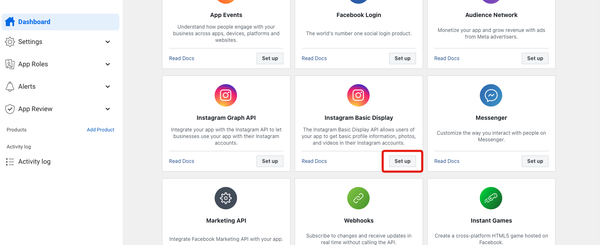

Go back to your dashboard, find "Instagram Basic Display" under "Add Products" and click [Set up].

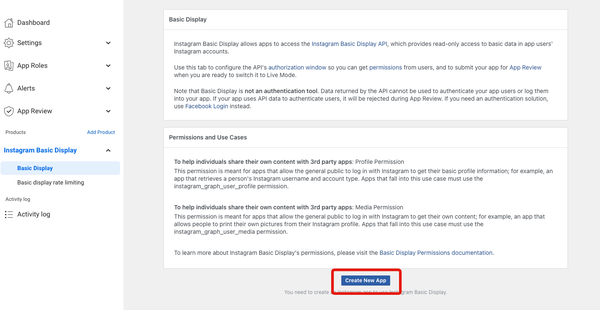

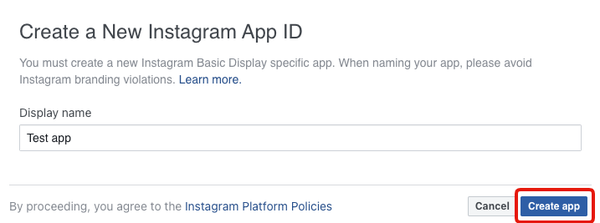

Scroll to the bottom of the page and click [Create New App].

The app name of the Facebook app that was created in the previous step will be displayed. Click [Create app] without changing anything.

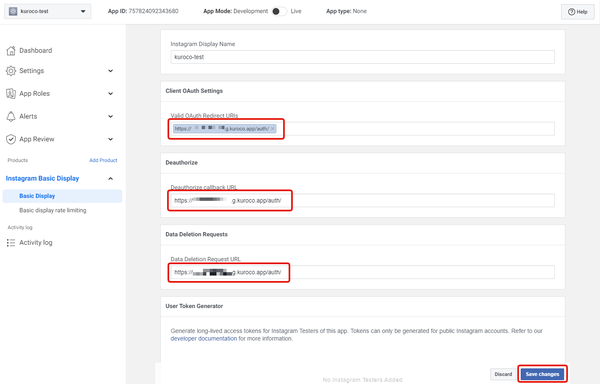

Once the Instagram app has been created, enter the URL https://frontendURL/auth/ into the fields "Valid OAuth Redirect URIs", "Deauthorize Callback URL", and "Data Deletion Request URL", then click "Save Changes".

While "Deauthorize Callback URL" and "Data Deletion Request URL" should ultimately be changed to the appropriate URLs capable of handling those processes, they can initially be set to the same value as the OAuth Redirect URI.

Add Instagram test user

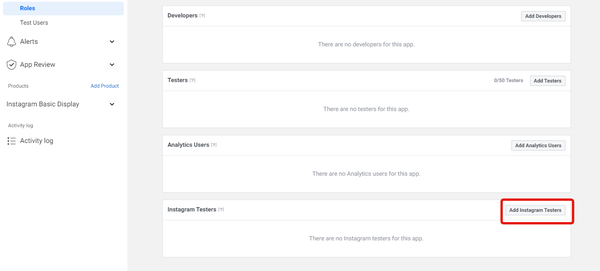

Navigate to [App Roles] -> Roles, scroll down to the Instagram Testers section and click [Add Instagram Tester].

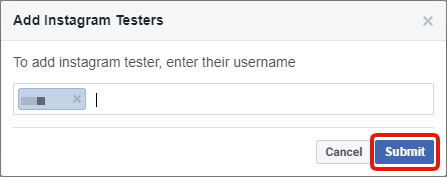

Enter Instagram account username and click [Submit].

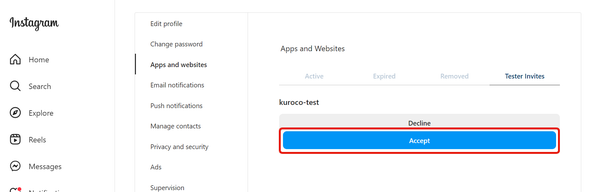

Access Instagram and login with the account you have just invited above. Click [Profile icon] > [Edit profile] > [Apps and websites] > [Tester Invites] and click [Accept].

Your Instagram account is now accessible from the Facebook app, even when it's in development mode.

Authentication process verification

We will verify the process of authenticating users and obtaining long-term Instagram user access tokens.

User authentication starts at the following URL:

https://api.instagram.com/oauth/authorize?client_id={app-id}&redirect_uri={redirect-uri}&scope=user_profile,user_media&response_type=code

Replace {app-id} and {redirect-uri} with "Instagram App ID" and "Valid OAuth Redirect URIs" respectively from [Instagram Basic Display]->[Basic Display].

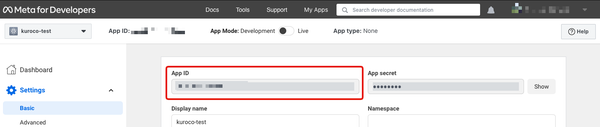

Please note that the Instagram App ID is different from the Facebook App ID.

For example, the full URL can be as below:
https://api.instagram.com/oauth/authorize?client_id=684477648739411&redirect_uri=https://socialsizzle.herokuapp.com/auth/&scope=user_profile,user_media&response_type=code

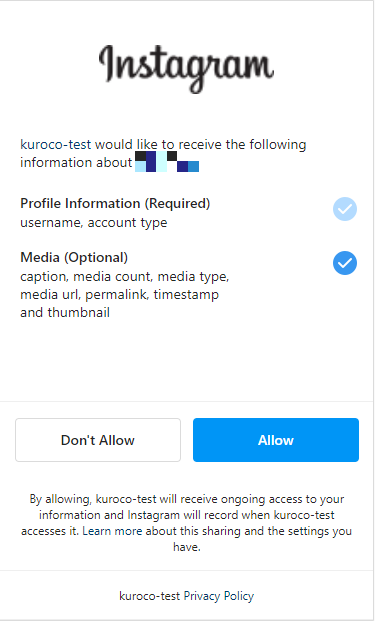

If you access the URL for your own Instagram App, the screen below will be displayed.

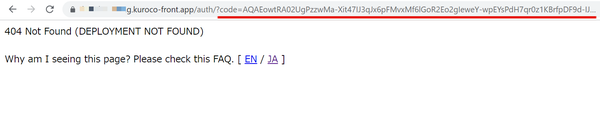

Click [Allow], then you will be redirected to the specified redirect URI and will see the authentication code in the URL.

This authentication code is exchanged for an access token by requesting the Instagram API along with the Instagram App ID and Instagram App Secret. In addition, we can get the Instagram feed by requesting the obtained access token and user ID to the Instagram API.

Kuroco settings (setup)

Now we set up the Kuroco settings.

Create content structure

First, create an Instagram long-term access token and a content structure that stores your Instagram feed.

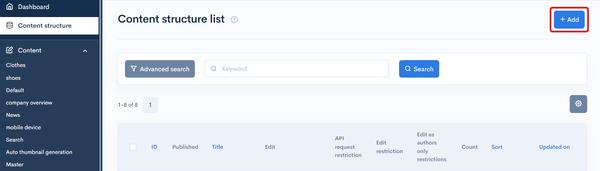

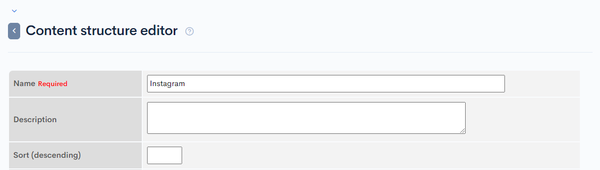

Click [Add] button on Content structure page.

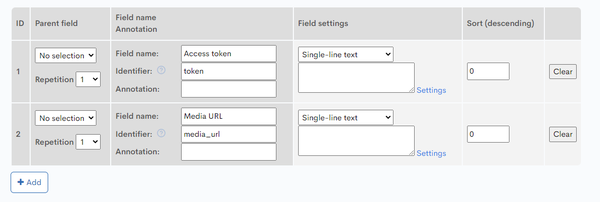

Enter as follows:

Item	Settings
Name	Instagram
ID=1	Field settings：Single-line text Field name：Access token Identifier：token Repetition：1
ID=2	Field settings：Single-line text Field name：Media URL Identifier：media_url Repetition：6

Click [Add] after completing above settings.

Create content

We will create an empty content to be updated by the custom function that will be implemented later.

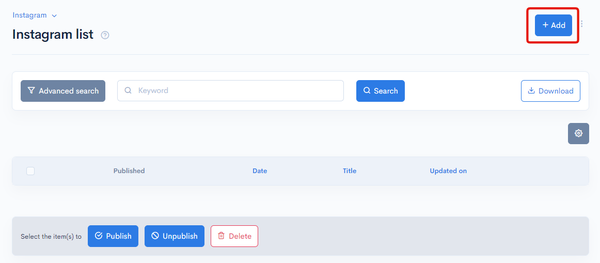

Click the [Add] button on the content page.

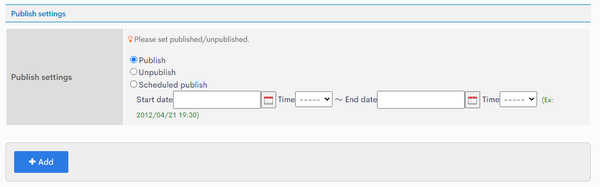

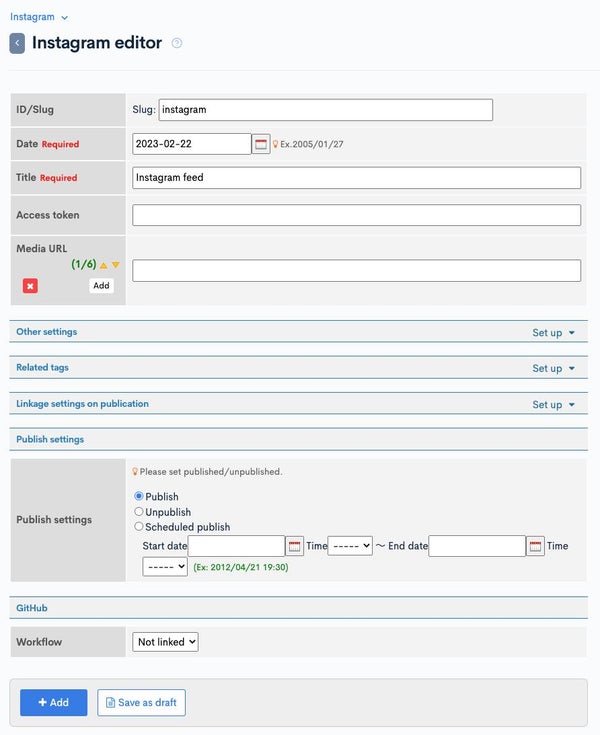

Enter the following and click [Add].

Item	value
Slug	instagram
Title	Instagram feed

Create constants and secret

Since the Instagram App ID and Instagram App Secret will be used several times in Kuroco's custom processing, we will register them as constants and secrets.
It is recommended that highly confidential items be registered as secrets.

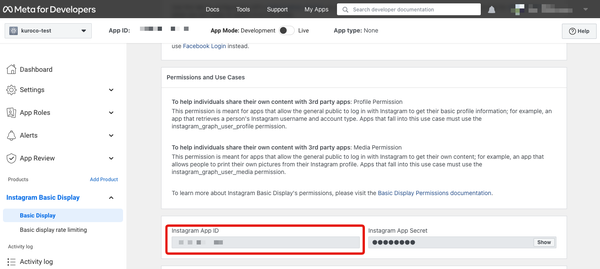

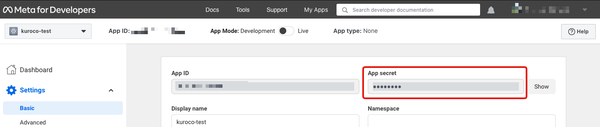

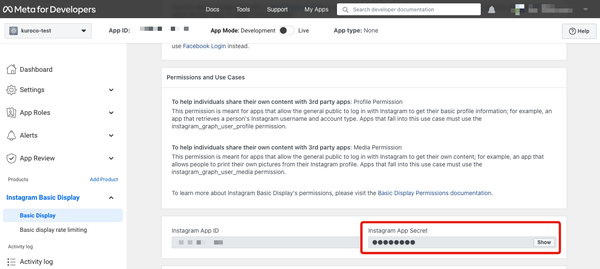

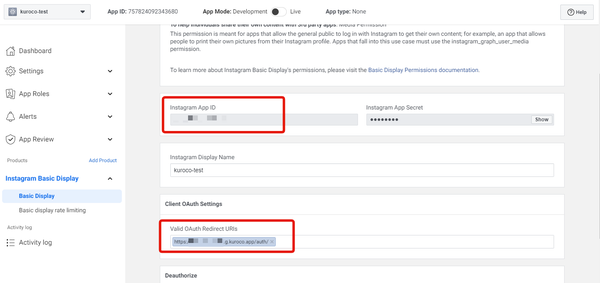

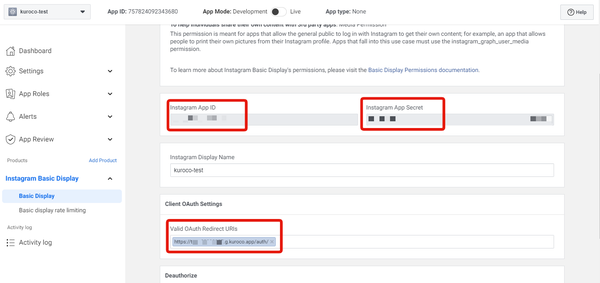

Copy the "Instagram App ID" and "Instagram App Secret" from the "Basic" page of the Instagram app.

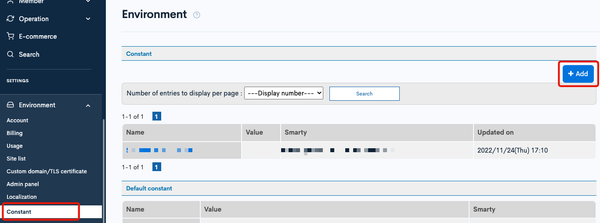

Go back to your Kuroco admin panel, click [Environment] > [Constant] on the side menu and click [Add].

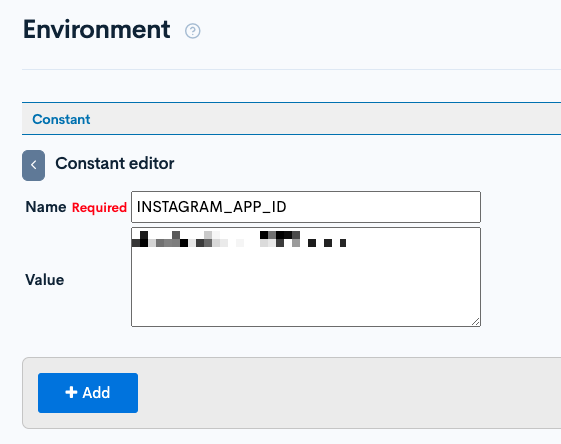

Enter the followings and click [Add].

Item	Settings
Name	INSTAGRAM_APP_ID
Value	Paste the "Instagram App ID" that you copied earlier

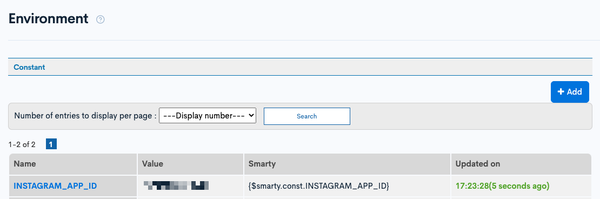

Once added, the Smarty variable syntax will be shown.

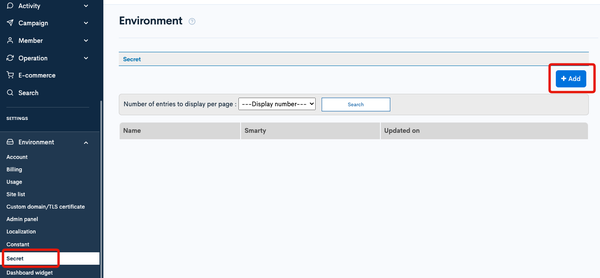

Next, click [Environment] > [Secret] and click [Add].

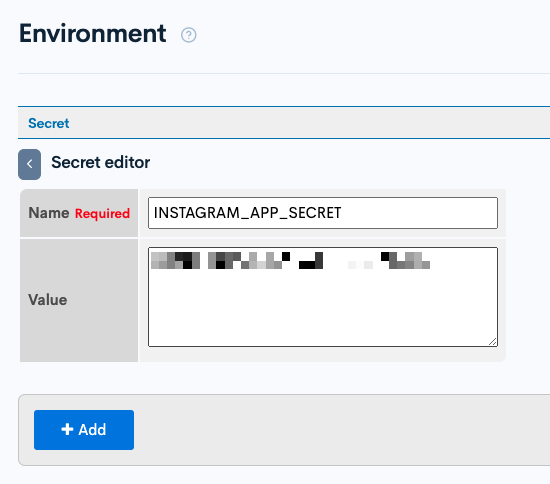

Enter as followings and click [Add].

Item	Settings
Name	INSTAGRAM_APP_SECRET
Value	Instagram App Secret

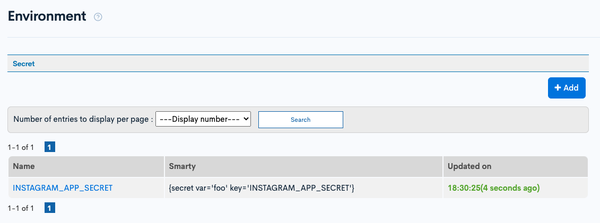

Once added, the Smarty variable syntax will be shown.

Create API

Create API for internal use

It is recommended to separate APIs for endpoints that are only used internally within Kuroco.
First, create a new API for internal use.
If it has already been added, you can proceed to the next step.

Creating APIs

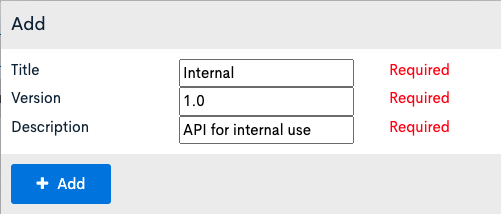

Click [Add] on the API page of the Kuroco admin panel.

Enter the following in the editor and click [Add].

Item	Settings
Title	Internal
Version	1.0
Description	API for internal use

The new API is now created.

Security settings

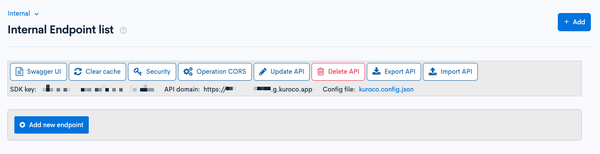

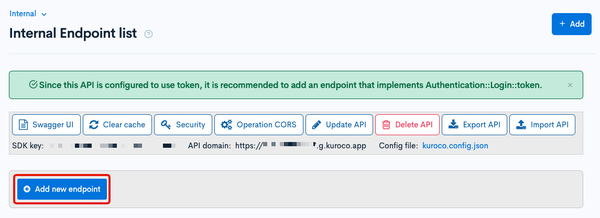

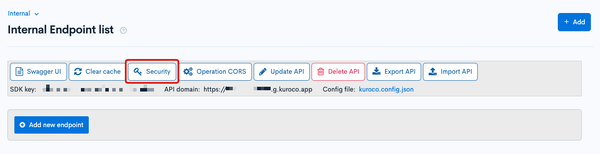

Next, we will need to configure the security settings. Click [Security].

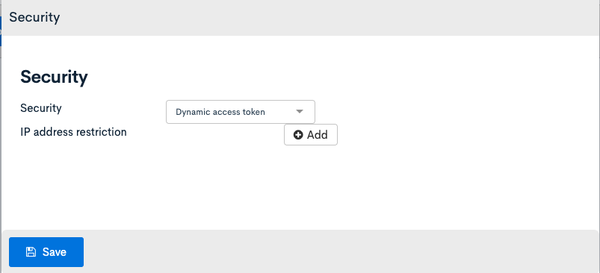

Select [Dynamic access token] and click [Save].

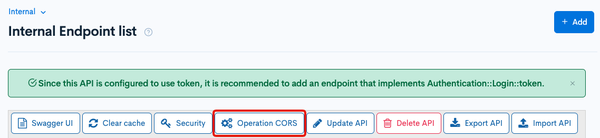

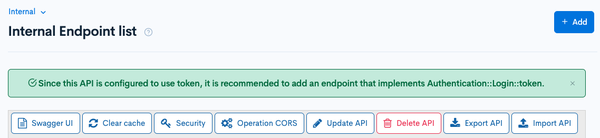

After setting the security to [Dynamic access token], the message "Since this API is configured to use token, it is recommended to add an endpoint that implements Authentication::Login::token." will be shown. We can ignore it for now since this API is only for internal use.

CORS settings

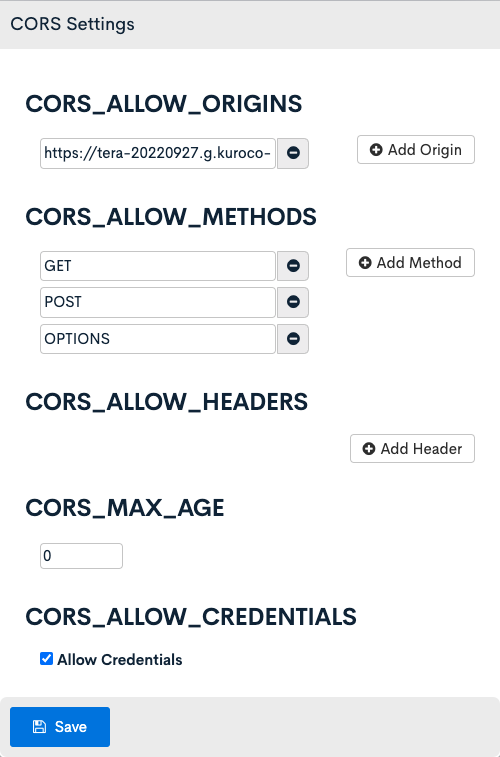

Next, we will configure CORS settings. Click [Operation CORS].

Click [Add origin] of CORS_ALLOW_ORIGINS and enter the following:

• Admin panel URL

Click [Add Method] of CORS_ALLOW_METHODS and enter the followings:

• GET
• POST
• OPTIONS

Confirm that [Allow Credentials] of CORS_ALLOW_CREDENTIALS is checked.

Click [Save] after finishing the above configuration.

Implement authorization feature using Kuroco and Nuxt.js

Create the required endpoints

We will need to create two endpoints

• instagram_auth endpoint: To receive the authentication code from the frontend
• instagram/update endpoint: To store the obtained long-term access token in Kuroco.

instagram_auth endpoint

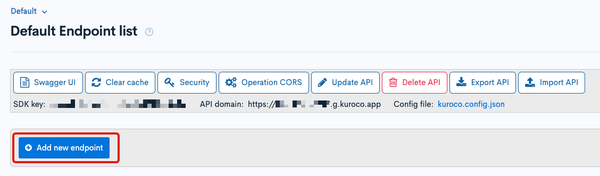

Since the instagram_auth endpoint sends requests from the frontend, click [Add new endpoint] from the "Default" API.

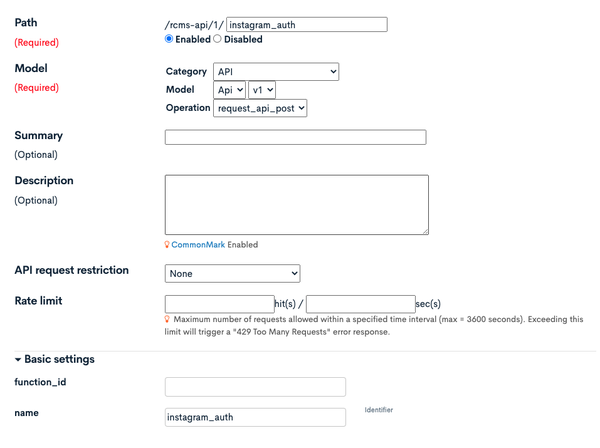

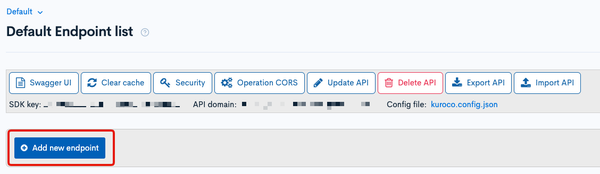

Create an endpoint below:

Item	Settings
Name	instagram_auth
Category	API
Model	Api
Operation	request_api_post
name	instagram_auth (This will be the identifier of the custom function we will create later.)

After finishing the above configuraion, click [Add] to add the endpoint.

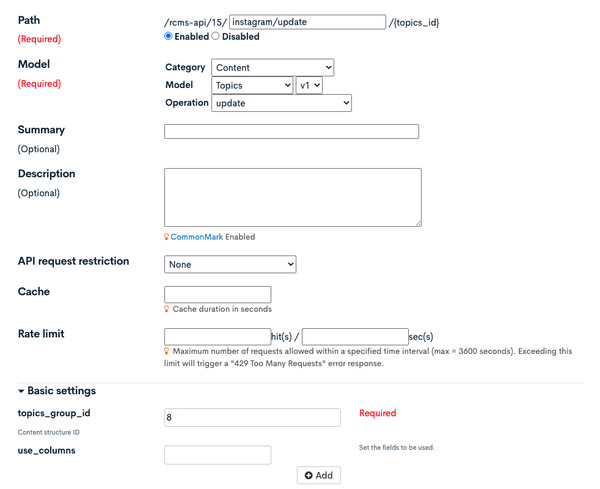

instagram/update endpoint

Since the instagram/update endpoint is an internal endpoint to be called from custom function, click [Add new endpoint] from the "Internal" API.

Add the following endpoint:

Item	Settings
Name	instagram/update
Category	Content
Model	Topics
Operation	update
topics_group_id	ID of the content structure created earlier(8)

After settings, click [Add] to add the endpoint.

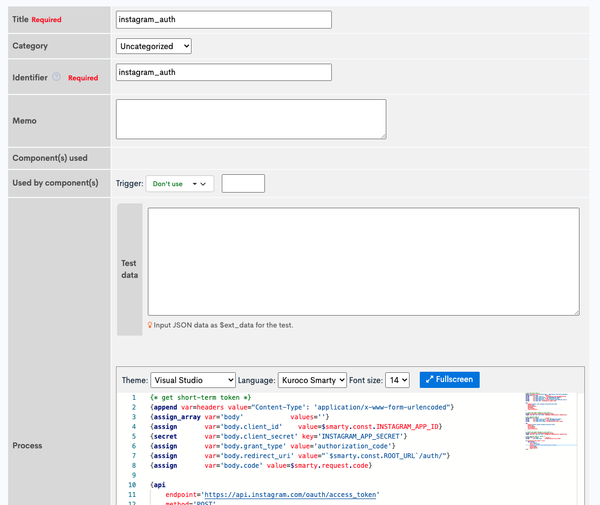

Create custom function

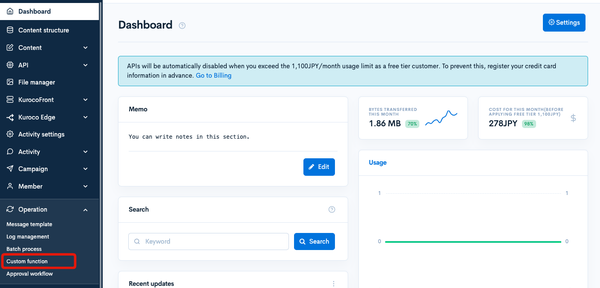

Click [Operation] -> [Custom function].

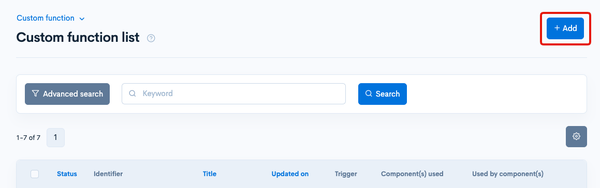

Click [Add].

Enter the following:

Item	Settings
Title	instagram_auth
Identifier	instagram_auth (This has to be the same name set in the Api::request_api endpoint.)
Process	Refer to the code below

{* get short-term token *}
{append var=headers value="Content-Type': 'application/x-www-form-urlencoded"}
{assign_array var='body'            values=''}
{assign       var='body.client_id'    value=$smarty.const.INSTAGRAM_APP_ID}
{secret       var='body.client_secret' key='INSTAGRAM_APP_SECRET'}
{assign       var='body.grant_type' value='authorization_code'}
{assign       var='body.redirect_uri' value="`$smarty.const.ROOT_URL`/auth/"}
{assign       var='body.code' value=$smarty.request.code}

{api
    endpoint='https://api.instagram.com/oauth/access_token'
    method='POST'
    headers=$headers
    body=$body
    var=response1
    status_var=status1
}

{* convert api plugin response to json format *}
{assign var=response1 value=$response1|@json_decode}
{logger msg1="get short-term token" msg2=$body msg3=$response1 msg4=$status1}

{* get long-term token *}
{assign_array var='body2'            values=''}
{secret       var='body2.client_secret' key='INSTAGRAM_APP_SECRET'}
{assign       var='body2.grant_type' value='ig_exchange_token'}
{assign       var='body2.access_token' value=$response1.access_token}

{api
    endpoint='https://graph.instagram.com/access_token'
    method='GET'
    queries=$body2
    var=response2
    status_var=status2
}

{* convert api plugin response to json format *}
{assign var=response2 value=$response2|@json_decode}
{logger msg1="get long-term token" msg2=$body2 msg3=$response2 msg4=$status2}

{* Add long-term token to content *}
{assign_array var='body3'            values=''}
{assign       var='body3.token'    value=$response2.access_token}

{if $response2.access_token != null}
    {api_internal
        var='response'
        status_var='status'
        endpoint='/rcms-api/4/instagram/update/instagram'
        method='POST'
        queries=$body3
        member_id='1'}
{/if}

caution

Replace /rcms-api/4/ with your own enpoint.

After completing the above configuration, click [Add] to save the custom function.

Frontend implementation

Next, we will implement the authenticaiton process on the frontend which send the authentication code to the Kuroco endpoint and activate the custom function.

Create index.vue file under /pages/auth/ directory.

<template>
  <div>
    <p>Authenticated</p>
  </div>
</template>

<script>
export default {
  validate({ query }) {
        return query.code != null
    },
  methods: {
    async makeAccessToken() {
      const payload = {
        code: this.$route.query.code
      }
      await this.$axios.post('/rcms-api/1/instagram_auth', payload);
    }
  },
  mounted($route) {
    this.makeAccessToken();
  }
}
</script>

Testing

Access the URL below and click [Allow].

https://api.instagram.com/oauth/authorize?client_id={app-id}&redirect_uri={redirect-uri}&scope=user_profile,user_media&response_type=code

Replace {app-id} and {redirect-uri} to "Instagram App ID" and "Valid OAuth Redirect URIs" respectively from [Instagram Basic Display]>[Basic Display].

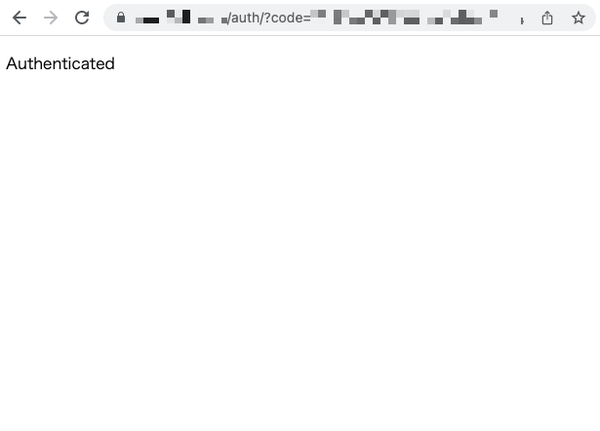

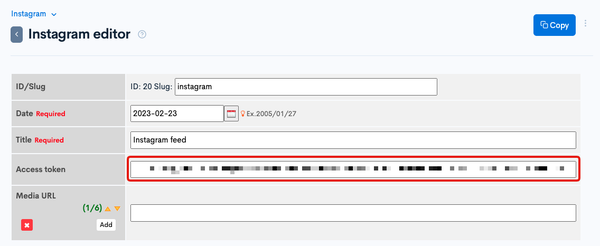

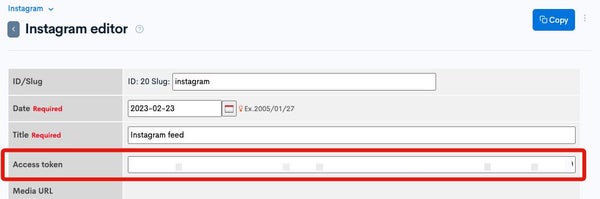

Confirm that it is redirected to the redirect URI and the access token is saved in the content.

Periodically get the Instagram feed via Kuroco

We will add a Kuroco batch process to retrieve the Instagram feed periodically and update the content with the data retrieved.

Create batch process

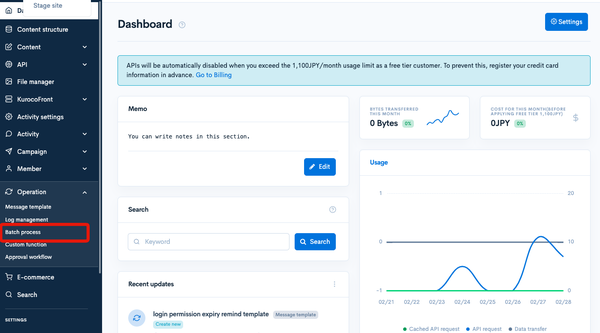

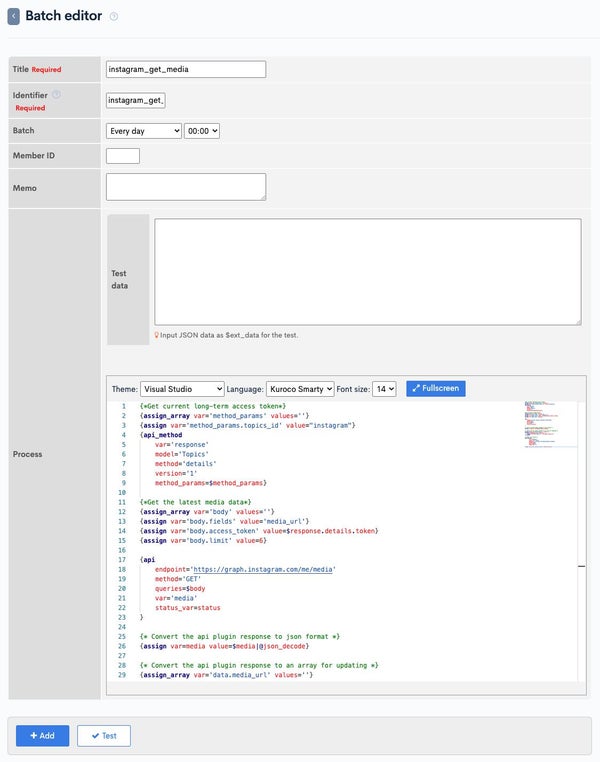

Click [Operation] > [Batch process].

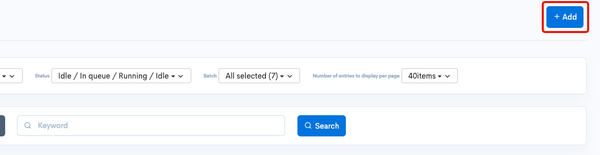

Click [Add].

Configure as follows:

Item	Settings
Title	instagram_get_media
Identifier	instagram_get_media
Batch	Every day 00:00
Process	Following code

{*Get current long-term access token*}
{assign_array var='method_params' values=''}
{assign var='method_params.topics_id' value="instagram"}
{api_method
    var='response'
    model='Topics'
    method='details'
    version='1'
    method_params=$method_params}

{*Get the latest media data*}
{assign_array var='body' values=''}
{assign var='body.fields' value='media_url'}
{assign var='body.access_token' value=$response.details.token}
{assign var='body.limit' value=6}

{api
    endpoint='https://graph.instagram.com/me/media'
    method='GET'
    queries=$body
    var='media'
    status_var=status
}

{* Convert the api plugin response to json format *}
{assign var=media value=$media|@json_decode}

{* Convert the api plugin response to an array for updating *}
{assign_array var='data.media_url' values=''}
{foreach from=$media.data item=foo}
    {append var='data.media_url' value=$foo.media_url}
{/foreach}

{* Update the content *}
{api_internal
        var='response2'
        status_var='status'
        endpoint='/rcms-api/4/instagram/update/instagram'
        method='POST'
        queries=$data
        member_id='1'}

{logger msg1="Get Instagram Media" msg2=$response2}

caution

Replace /rcms-api/4/ with your own enpoint.

Once the configuration is complete, click [Add] to create the batch process.

Confirmation of Operation

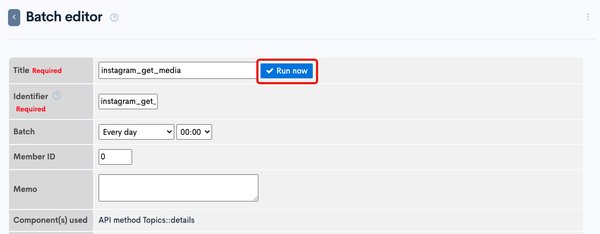

Finally, click [Run now] to confirm the operation.

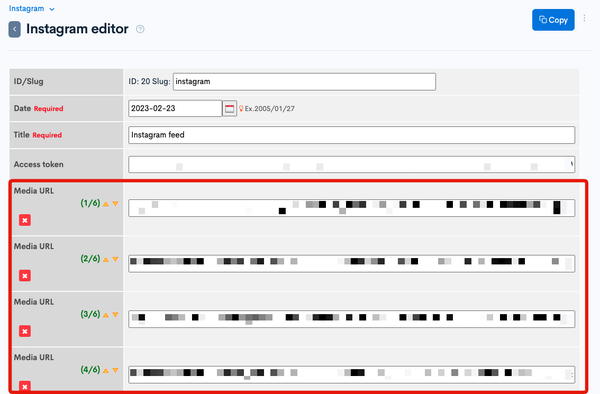

If the settings have been properly configured, the Instagram media URL will be saved in the content as shown below.

Periodically refresh long-term access tokens in Kuroco

The long-term access token for the Instagram Basic Display API has an expiration period of 60 days. An endpoint is provided by Instagram to update the long-term access token, so let's create a batch processing to send a request regularly.

Creating batch process

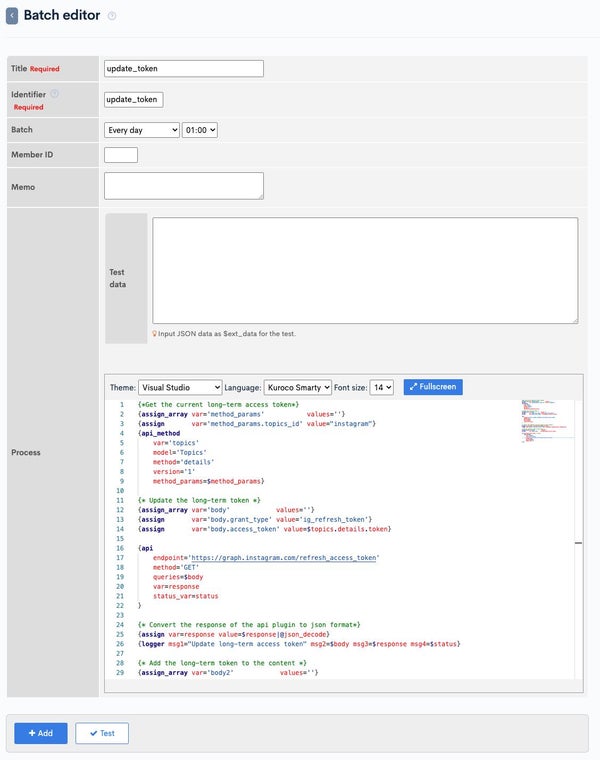

Click [Operation] > [Batch process].

Click [Add].

Configure as follows:

Item	Settings
Title	update_token
Identifier	update_token
Schedule	Every day 01:00
Process	Code below

{*Get the current long-term access token*}
{assign_array var='method_params'           values=''}
{assign       var='method_params.topics_id' value="instagram"}
{api_method
    var='topics'
    model='Topics'
    method='details'
    version='1'
    method_params=$method_params}

{* Update the long-term token *}
{assign_array var='body'            values=''}
{assign       var='body.grant_type' value='ig_refresh_token'}
{assign       var='body.access_token' value=$topics.details.token}

{api
    endpoint='https://graph.instagram.com/refresh_access_token'
    method='GET'
    queries=$body
    var=response
    status_var=status
}

{* Convert the response of the api plugin to json format*}
{assign var=response value=$response|@json_decode}
{logger msg1="Update long-term access token" msg2=$body msg3=$response msg4=$status}

{* Add the long-term token to the content *}
{assign_array var='body2'            values=''}
{assign       var='body2.token'    value=$response.access_token}

{if $response.access_token != null}
    {api_internal
        var='response'
        status_var='status'
        endpoint='/rcms-api/4/instagram/update/instagram'
        method='POST'
        queries=$body2
        member_id='1'}
{/if}

caution

Replace /rcms-api/4/ with your own enpoint.

Once you have entered the settings, click [Add] to add the batch process.

Testing

Finally, click [Run now] to confirm the access token is being retrieved.

If the settings are correct, the access token in the content will be updated.

Display Instagram feed using Kuroco and Nuxt.js

Everything has been configured, all that is left is to display the Instagram media URLs you have added to your Kuroco content on the front page.

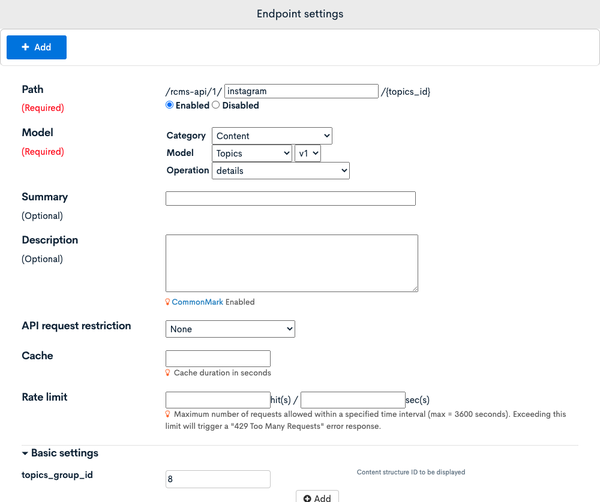

Creating an endpoint

Click [Add new endpoint] from the Default API.

Create the following endpoint:

Item	Settings
Name	instagram
Category	Content
Model	Topics
Operation	details
topics_group_id	Content structure ID(8)

Click [Add] after configuring the endpoint.

Front-end implementation

Create an index.vue file in the /pages/instagram/ directory for the front-end as follows:

<template>
  <div>
    <h2>Instagram</h2>
    <div class="square_contents">
      <a v-for="(n,i) in response.details.media_url" :key=i href="https://www.instagram.com/" target="_blank">
        <img :src=n>
      </a>
    </div>
  </div>
</template>

<script>
export default {
  async asyncData({ $axios }) {
    return {
      response: await $axios.$get('/rcms-api/1/instagram/instagram'),
    };
  },
};
</script>

<style>
.square_contents {
  display: flex;
  flex-wrap: wrap;
  width:720px;
}
.square_contents a {
  display: block;
  position: relative;
  width: 31%;
  margin: 1%;
}
.square_contents a::before {
  content: "";
  display: block;
  padding-top: 100%;
}
.square_contents img {
  position: absolute;
  width: 100%;
  height: 100%;
  top: 0;
  object-fit: cover;
}
</style>

Testing

Confirm that the Instagram feed is being displayed on the frontend.

With the above setup and implementation, the Instagram feed is displayed, and in the event of an update, Kucoro's content will be automatically updated as well.

In this tutorial, we used the Instagram basic display API to display the Instagram feed.
You can also use the Instagram graph API for the following cases:

• Identify media with specific @mentions or hashtags.
• Retrieve data about other Instagram users.
• Get Instagram stories.

Points to check when it doesn't work as expected

• Is frontend repository deployed successfully? (Is the auth/?code=1234 page shown properly?)
• Check that the Kuroco constant INSTAGRAM_APP_ID is set to Instagram App ID instead of App ID to INSTAGRAM_APP_ID.
  CORRECT(Instagram App ID):

  WRONG(App ID):

• Check that the Kuroco secret INSTAGRAM_APP_SECRET is set to Insagram App Secret instead of App Secret.
  CORRECT(Instagram App Secret):

  WRONG(App secret):


Related documents

• Can I call Kuroco's API from custom function?
• Smarty Plugin
