API

On the endpoint list screen for each API, you can create and configure APIs as well as endpoints.

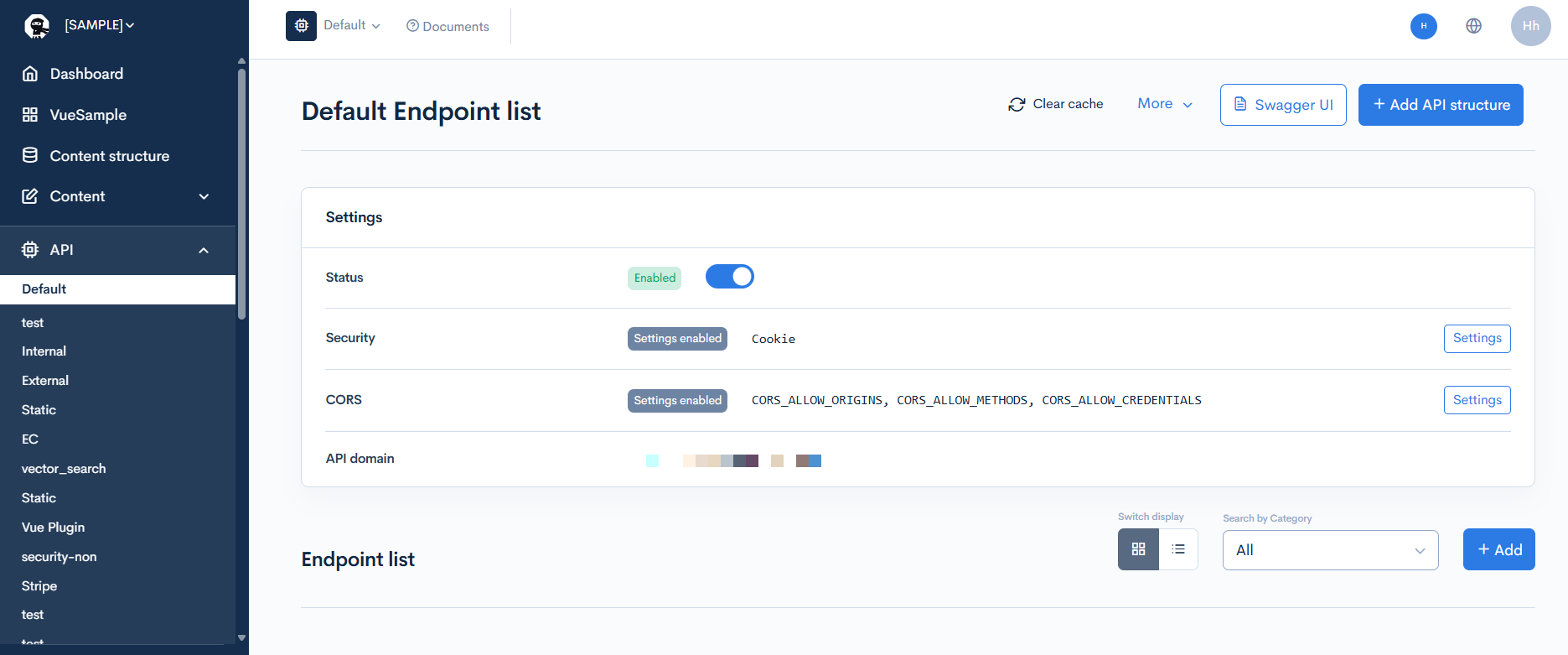

Accessing the screen

In the left sidebar menu, click [API] and select the API you want to look at.

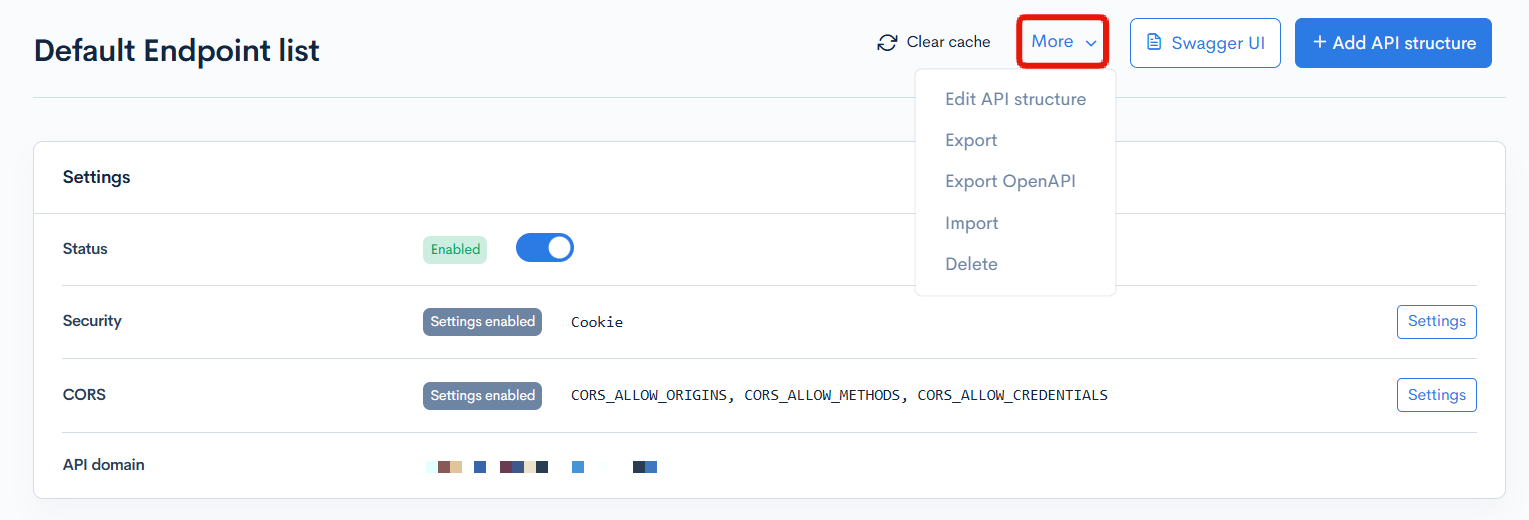

Main menu

The main menu buttons appear at the top of the endpoint list screen.

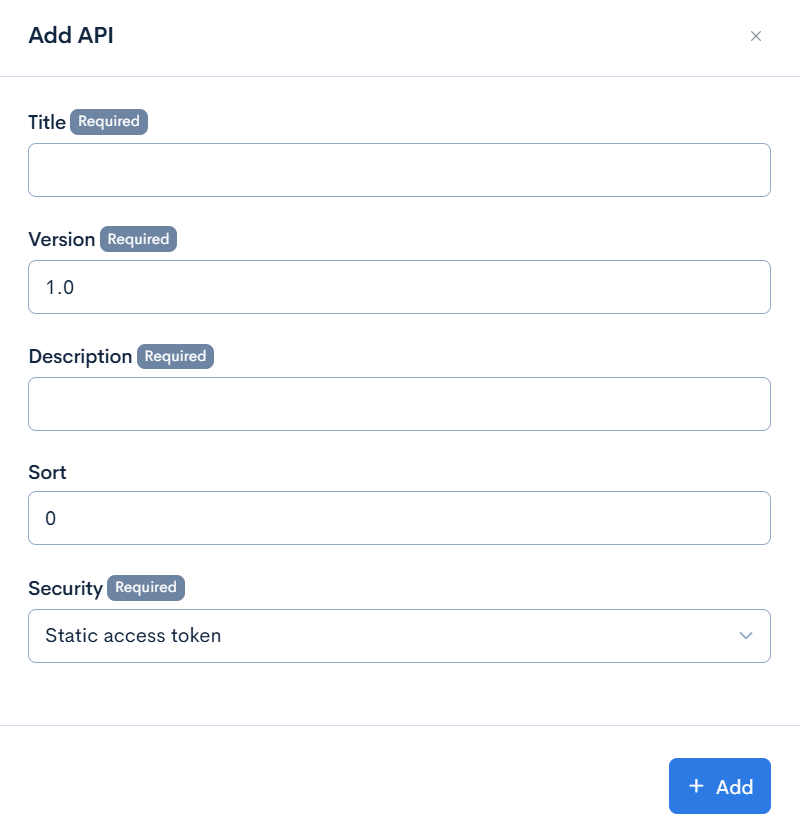

[Add]

Opens the API editor.

Item	Description
Title	Title of the API (required field).
Version	Version of the API (required field).
Description	Overview of the API (required field).
Sort	Enter the order of the APIs. They will be arranged in descending order.
Security	Select API security
Add	Click to create the API.

[Swagger UI]

Redirects to the Swagger UI screen for the current API.

](htt

(See: Using Swagger UI to check the data structure of your content for details).

[Clear cache]

Clears the settings cache of the current API. Any changes to Kuroco's internal behavior clears the cache and applies/reflects the latest version.

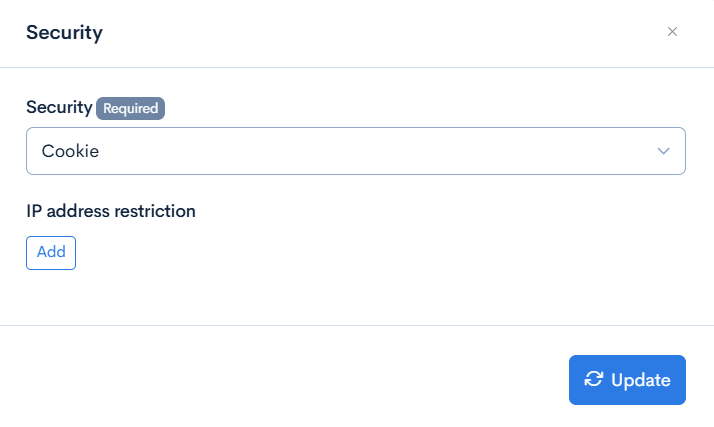

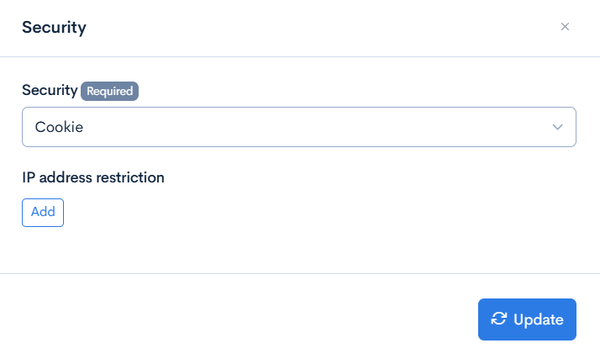

[Security]

Configures the security settings for the current API.

(See: API Security for details.)

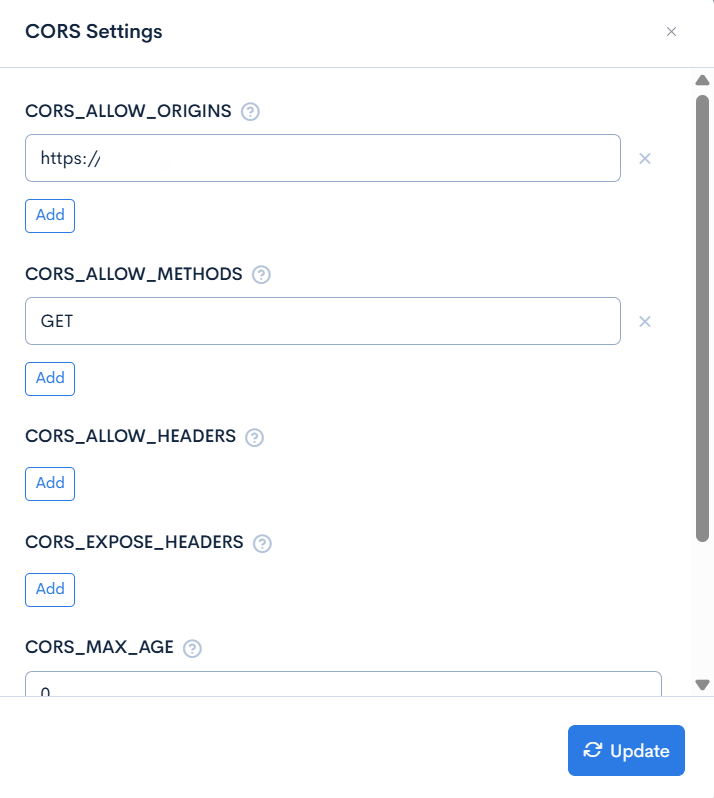

[Operation CORS]

To enable CORS, customize the information that the Kuroco server returns to the response header.

The origin configured for CORS is the one assigned in the Content-Security-Policy: frame-ancestors. For example, to access the Kuroco server from the local frontend http://localhost:8080, configure http://localhost:8080 as follows.

(See: MDN Web Docs for details.)

Item	Corresponding response header	Sample http://localhost:8080
CORS_ALLOW_ORIGINS	Access-Control-Allow-Origin	http://localhost:8080
CORS_ALLOW_METHODS	Access-Control-Allow-Methods	GET,POST,OPTIONS
CORS_ALLOW_HEADERS	Access-Control-Allow-Headers	*
CORS_MAX_AGE	Access-Control-Max-Age	600
CORS_ALLOW_CREDENTIALS	Access-Control-Allow-Credentials	✅

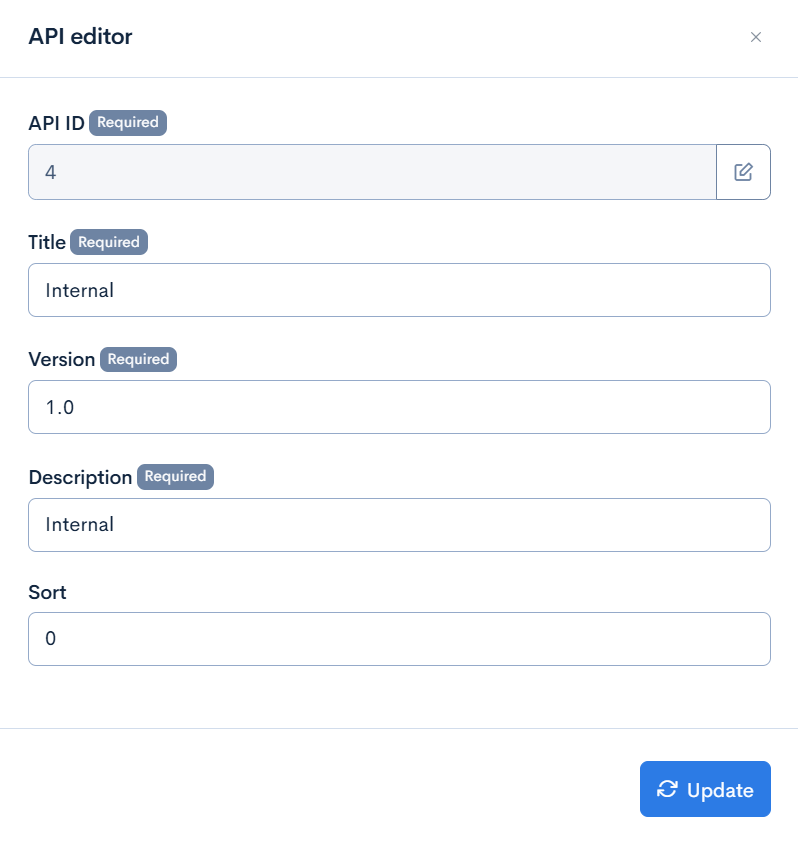

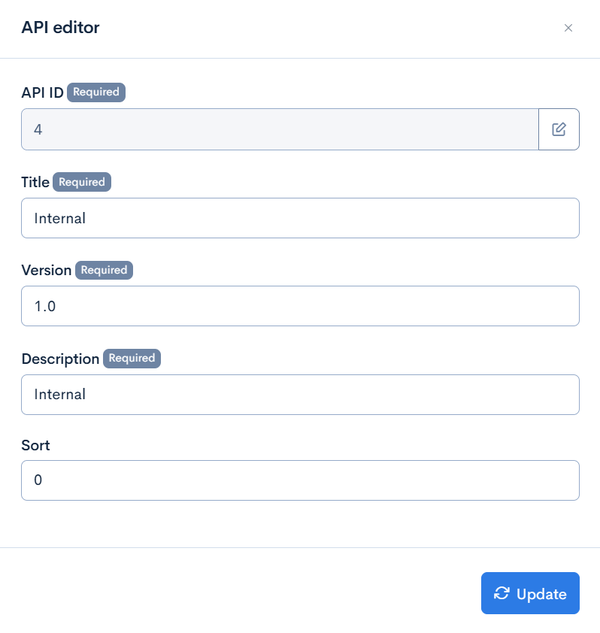

[Update API]

Updates the settings of the current API. The input fields are the same as the Add section.

[Delete API]

Deletes the current API.
Note: Deleted APIs cannot be recovered.

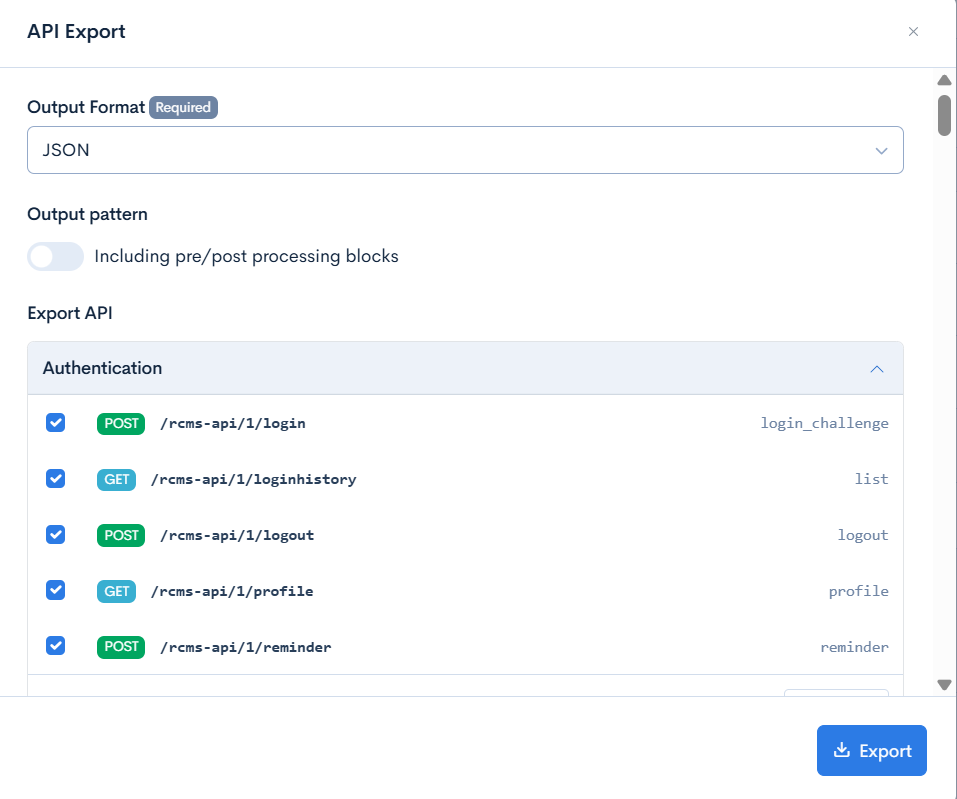

[Export API]

Exports the current API in JSON/YAML format.

The exported configuration file is in Kuroco's own format. To include pre-/post-processing settings, check the "Including pre/post processing blocks" box.

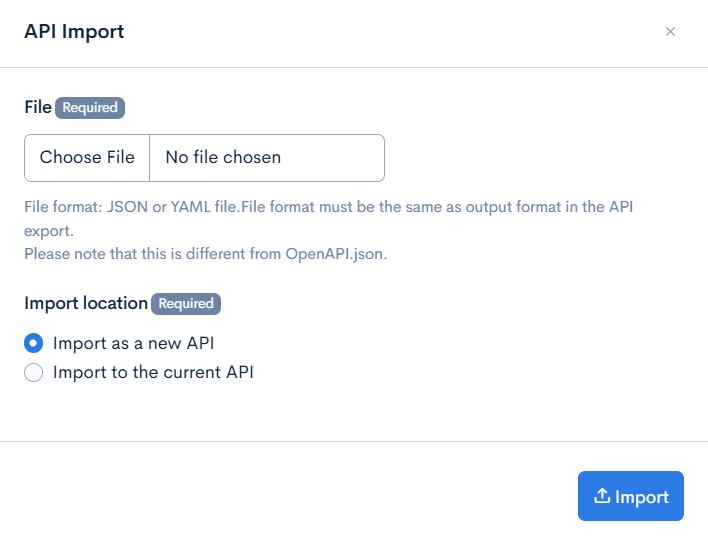

[Import API]

Imports the current API in JSON/YAML format.

Select "Import as new API" to create a new API. Selecting "Import to the current API" updates the current API.

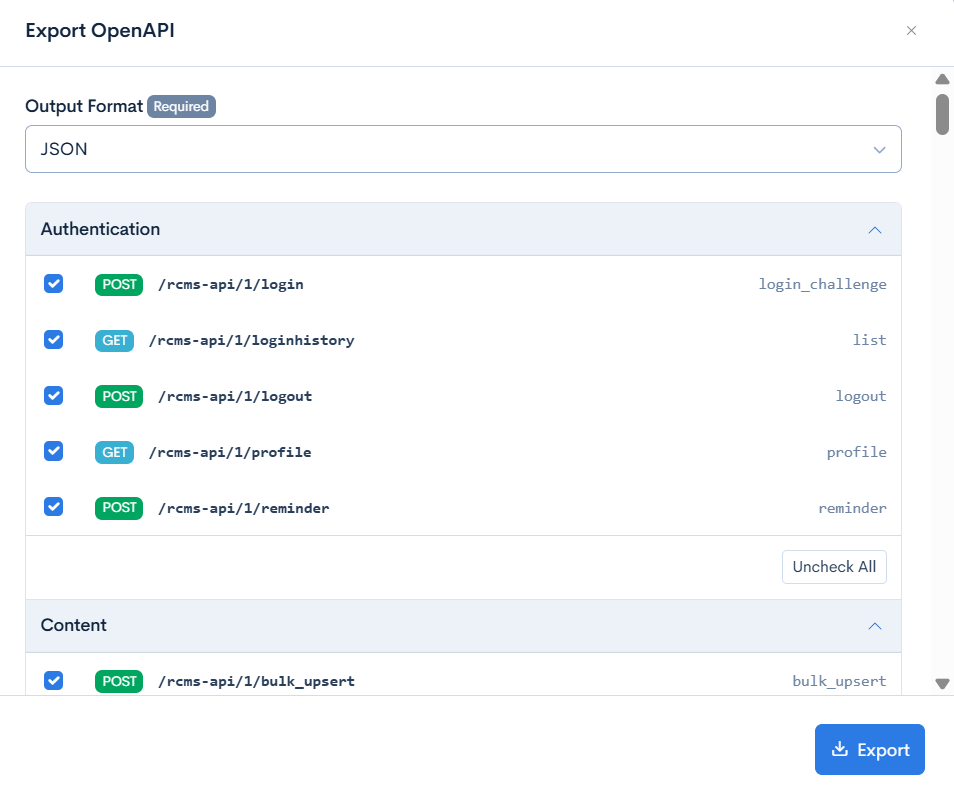

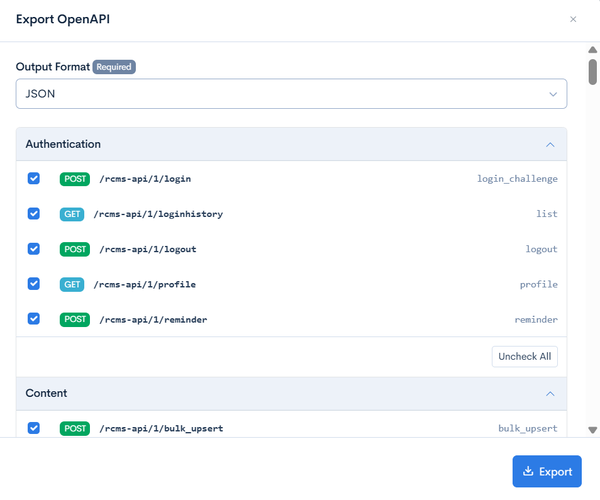

[OpenAPI Export]

Exports the current API in JSON/YAML format.

The exported files are configuration files formatted according to the OpenAPI specification.
They are intended to be used throughout the entire development lifecycle, including documenting APIs, automatically generating client and server code, and creating API tests and mocks.

Sample

openapi: 3.1.0
info:
  title: Default
  version: '1.0'
  description: 'Default API'
servers:
  -
    url: 'https://xxxxxx.g.kuroco.app'
    description: 'API Backend'
paths:
  /rcms-api/1/news/list:
    get:
      tags:
        - Content
      summary: ''
      parameters:
        -
          name: _output_format
          schema:
            type: string
            format: ''
          in: query
          required: false
          style: form
          explode: true
          description: 'Format (json|xml|csv|zip)'
        -
          name: _lang
          schema:
            type: string
            format: ''
          in: query
          required: false
          style: form
          explode: true
          description: Language
        -
          name: _charset
          schema:
            type: string
            format: ''
          in: query
          required: false
          style: form
          explode: true
          description: Charset
        -
          name: cnt
          schema:
            type: integer
            format: int64
          in: query
          required: false
          style: form
          explode: true
          description: 'Number of entries per page'
        -
          name: pageID
          schema:
            type: integer
            format: int64
          in: query
          required: false
          style: form
          explode: true
          description: 'Page ID'
        -
          name: filter
          schema:
            type: string
            format: ''
          in: query
          required: false
          style: form
          explode: true
          description: 'Filter query'
      responses:
        200:
          description: 'Topics data successfully fetched'
        404:
          description: 'Topics data could not be found'
・
・
・

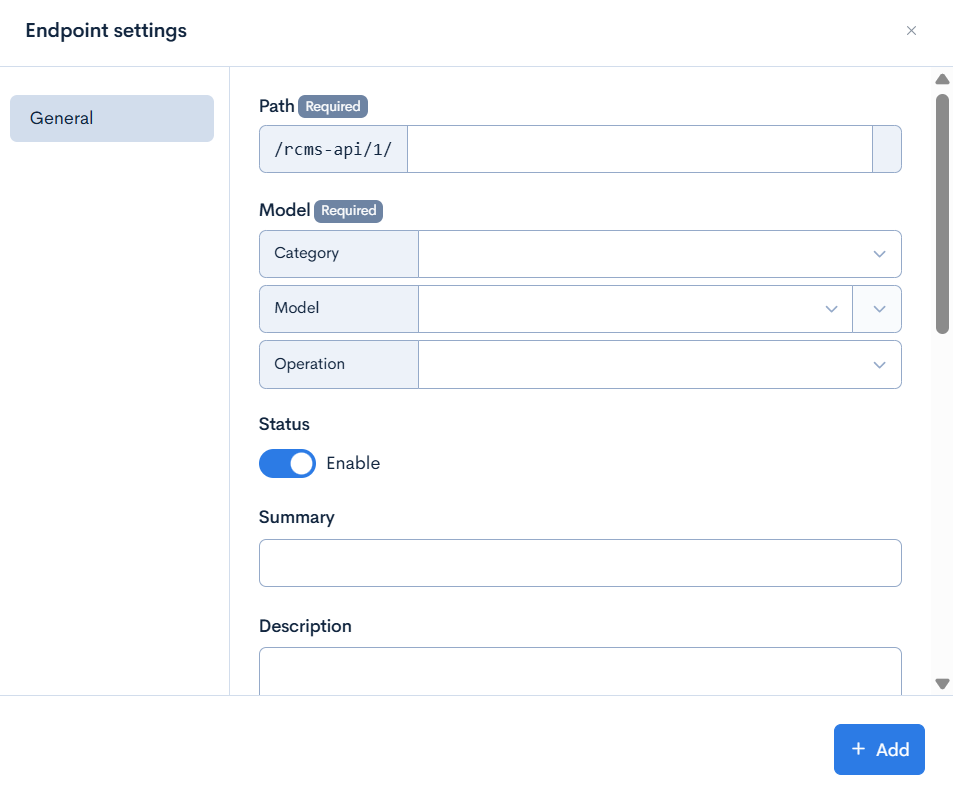

[Add new endpoint]

Opens the "Add new endpoint" pop-up screen.

(See: Reference - API - Endpoint settings for more details.)

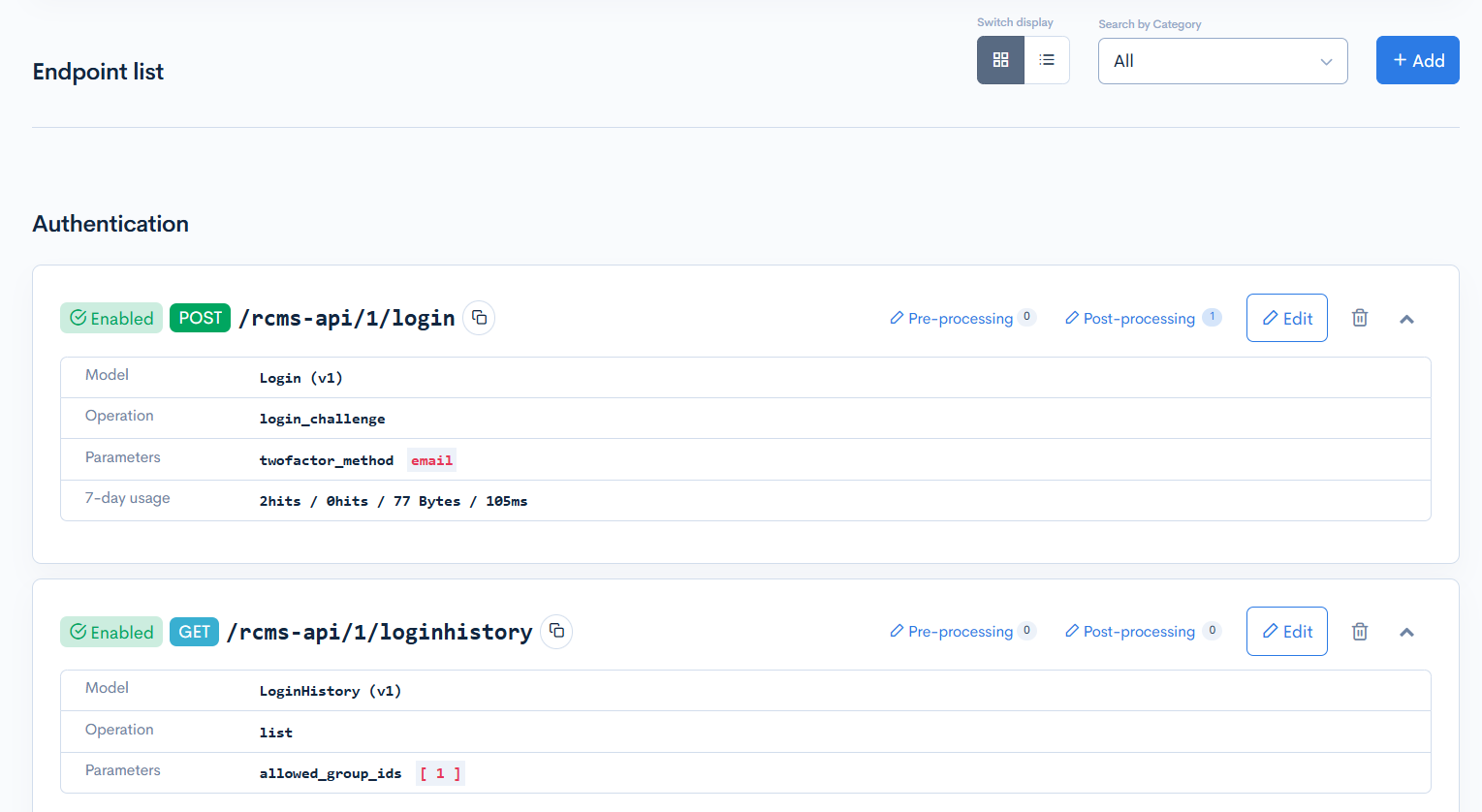

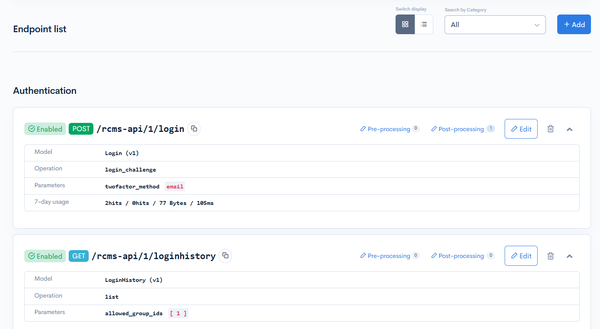

Endpoint list

A list of endpoints for the current API is displayed below the main menu.

This list appears only after you have added endpoints to a new API. The endpoints are grouped by category.

Item	Description
Enabled	Indicates whether the API is enabled or disabled.
Method	HTTP method.
Path	Path of the endpoint.
Model	The Kuroco model bound to the endpoint.
Operation	The operations associated with the model.
Summary	Value specified when creating the endpoint.
Parameters	Operation parameters.
Authentication	Method of authentication.
[Update]	Opens the "Configure endpoint" pop-up screen.
[Pre-processing]	Displays the pre-processing settings editor. The total number of pre-processes that have been set will be displayed.
[Post-processing]	Displays the post-processing settings editor. The total number of post-processes that have been set will be displayed.
[Delete]	Deletes the endpoint.

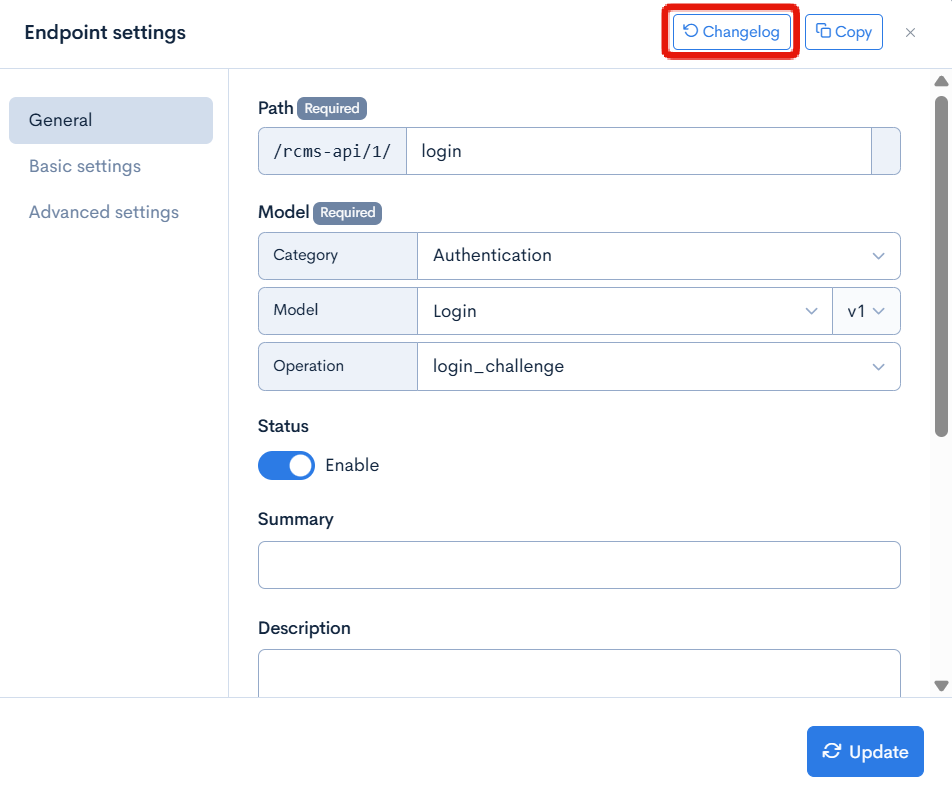

Changelog

You can see a list of the history of editing from the endpoint settings screen.

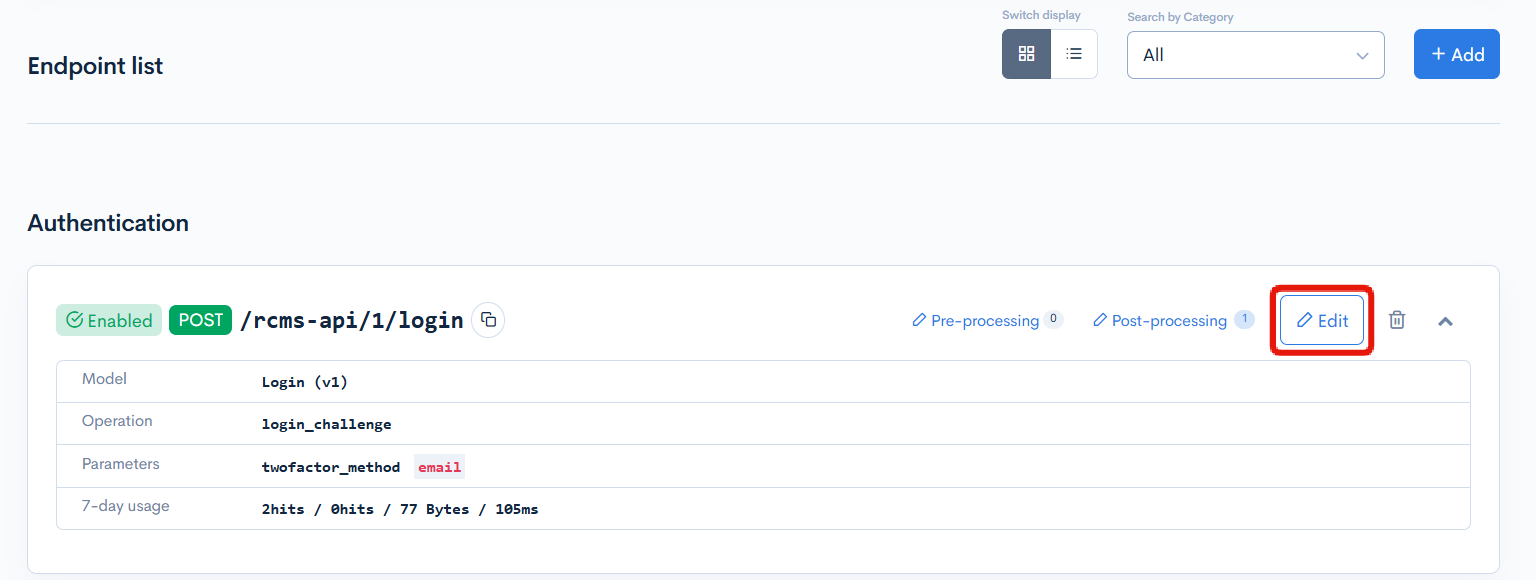

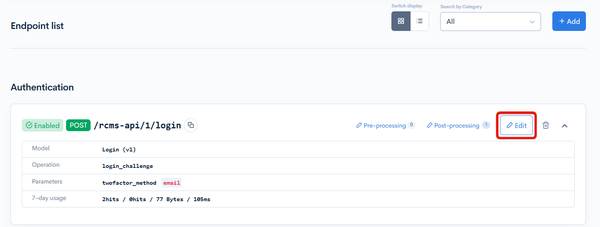

Click the "Update" in the endpoint list, then open the endpoint settings.

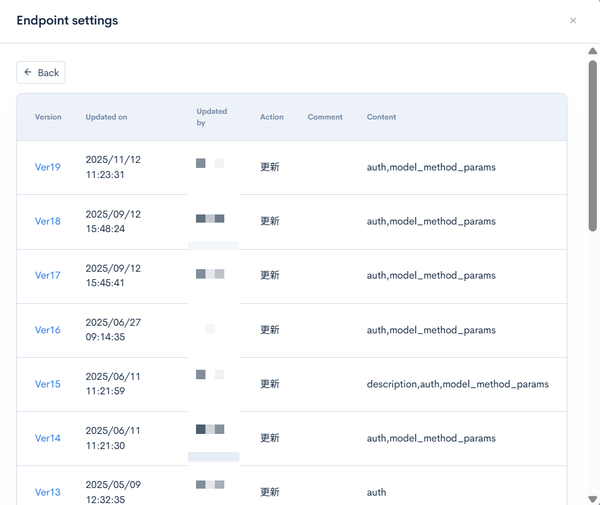

Click the "Changelog" to see a list of the history of editing the endpoint settings.

Endpoint settings changelog

Item	Description
Version	Displays the version. You can see the target version after clicking the version link.
Updated on	Displays the date and time the content was updated.
Updated by	Displays the name of the member who updated the content.
Action	Displays the type of processing performed. There are six types of statuses as follows Create new Update Deleted Request Approved Reject Approval
Comment	Displays the comments at the time of update.
Content	Displays the updated contents.
