KurocoFront Log

You can check the access log of files for KurocoFront.

Accessing the screen

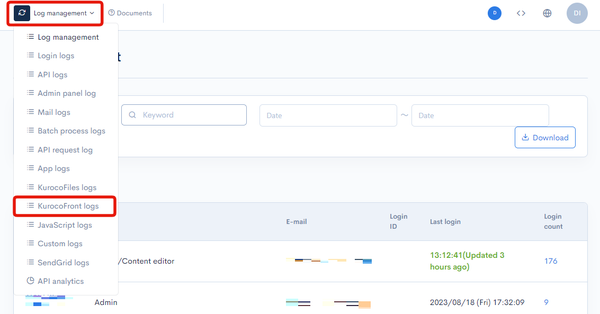

Click [Operation] -> [Log management].

Click [Log management] above the page title and click [KurocoFront Logs] in the dropdown menu.

Field descriptions

Filter conditions

You can filter the logs easily using the keywords search and log date/time, advanced search functions.

Keywords search

Enter the search keyword in the [Keyword] text box and click [Search] to filter logs that contain the specified keyword.

Timestamp search

Select the date and time range for the timestamp and click [Search].
The designated logging period is 35 days. When specifying past log dates, please make sure to specify within the 35-day range.

Advanced search

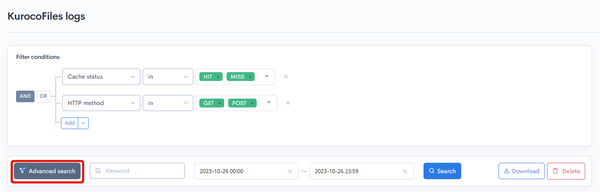

Click the [Advanced search] button to input advanced filter conditions.

The following input options are available:

Field	Description	Specifiable conditions
Cache status	Indicates if this request was served by a cache.	Cache status
HTTP method	HTTP method of the request.	HTTP method
Status	HTTP response status code for the request.	HTTP status
Response	API response message.	Available search operations
URI	URI of the endpoint that sent the request.	Available search operations
Client IP address	IP address of the user making the request.	Available search operations
API access token	Access token which was sent with the request.	Available search operations
Execution time	Request execution time of the server.	Available search operations
Body size	Body size of HTTP request.	Available search operations
Referer	URL of the website right before the currently requested page.	Available search operations
User agent	The user agent who requested the API.	Available search operations
City	City code of the user..	Available search operations
Country code	Country code of the user.	Available search operations
IO info	Fastly image optimizer data.	Available search operations
Application request ID	Kuroco request ID.	Available search operations
Request ID	Fastly request ID.	Available search operations

The advanced search function allows you to concatenate multiple conditions using AND or OR.

• AND: Returns only data matching all the specified conditions in your search.
• OR: Returns data matching any of your specified conditions.

Available search operations

You can specify the following operations in the search conditions:

Operation	Input type	Returned data
contains	Text string	Entries matching part of the search term.
not contains	Text string	Entries not matching any part of the search term.
=	Alphanumeric string	Entries exactly matching the search term.
!=	Alphanumeric string	Entries not exactly matching the search term.
<	Alphanumeric string	Entries less than the search term.
>	Alphanumeric string	Entries greater than the search term.
<=	Alphanumeric string	Entries less than or equal to the search term.
>=	Alphanumeric string	Entries greater than or equal to the search term.
starts with	Text string	Entries beginning with the search term.
not starts with	Text string	Entries not beginning with the search term.
ends with	Text string	Entries ending with the search term.
not ends with	Text string	Entries not ending with the search term.
in	Alphanumeric string	Entries matching any of the search terms (for multiple search terms only).
not in	Alphanumeric string	Entries not matching any of the search terms (for multiple search terms only).

Sort

Under "Sort", you can specify the sort key and display order of the search results.

• ASC: Ascending, from oldest to newest.
• DESC: Descending, from newest to oldest.

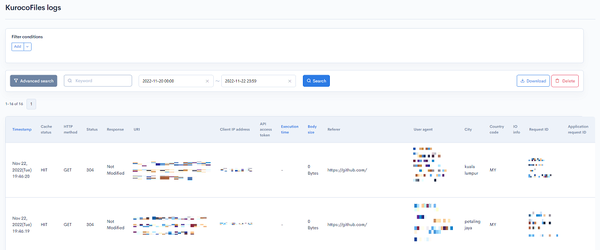

Log entries

The columns displayed for the log entries are as follows:

Column	Description
Timestamp	the date and time when the log was registered
Cache status	It shows whether the cache was used for the request. See Cache status for the detail.
HTTP method	HTTP method
Status	HTTP response status code
Response	API response message
URI	URI endpoint tp which the request was sent
Client IP address	IP address of the user who sent the request
API access token	access token which was sent with the request
Execution time	request execution time of the server
Body size	body size of HTTP request
Referer	URL of the website right before the currently requested page
User agent	the user agent who requested the API
City	the place information where the user
Country code	country code of the user
IO info	Fastly image optimizer data
Request ID	Fastly request ID
Application request ID	Kuroco request ID

Cache status

There are following 3 kinds of status.

Item	Description
HIT	There was a request from the cache.
MISS	Reached the server without finding the cache.
PASS	Could not cache.

Buttons

Button	Description
Search	Search based on the above settings.
Download	Download a list of the displayed logs.
Delete	Delete a list of the displayed logs.

Log list download

After click [Download] button, the download settings will open.

Field(s)	Description
Charset	Character encoding of the output CSV file.
Cancel	Cancel downloading.
Download	Execute downloading.
